SKU
FL40x40C3STAK_en
The Plastic Flange 400×400 mm is designed for suspended storage and transport of reels, bobbins, and rolls with a minimum diameter of 380 mm.
Equipped with a central cone of 76.3 mm (3 inches), this flange ensures precise centering and stable suspension of cylindrical loads.
Manufactured in rigid high-impact polystyrene (HIPS), it offers excellent mechanical strength, durability, and resistance for industrial and logistics applications.

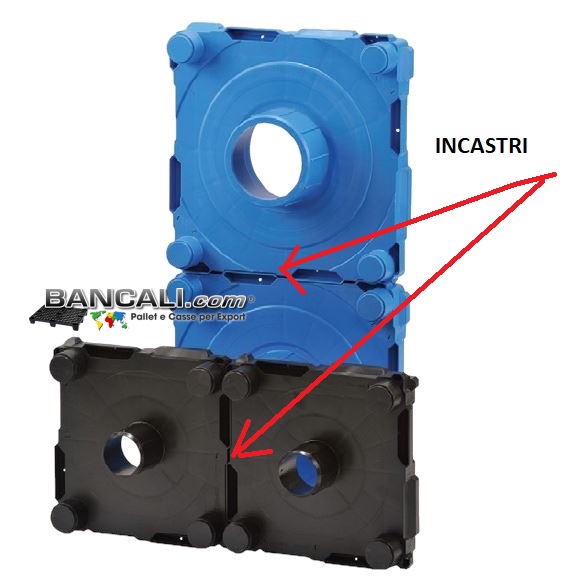

Integrated interlocking inserts allow safe alignment and positioning when used in pairs.
External size: 400×400 mm
Cone diameter: 76.3 mm (3”)
Cone depth: 76 mm
Flat plate thickness: 50 mm
Minimum roll diameter: 380 mm
Material: High-impact rigid plastic (HIPS)
Tare weight: 2 kg (each flange)
