Nylon PA6 V-Style Plastic Cradle – For Cylinders and Reels up to Ø1300 mm

SKU SiLLA-CUNA-n1_es

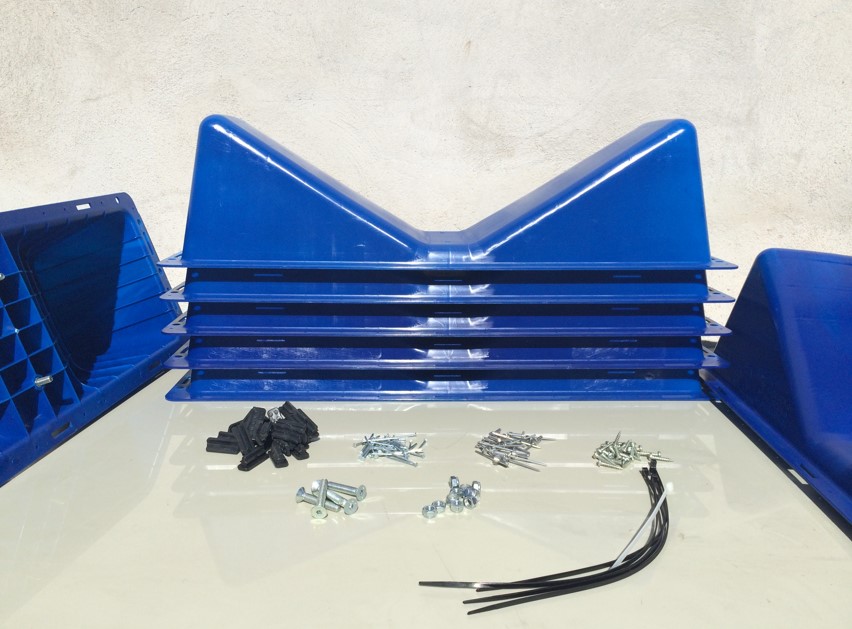

Lightweight and durable V-shaped cradle made of virgin Nylon PA6, designed for supporting cylinders, reels, and tanks up to 1300 mm in diameter. Featuring a strong 500 kg load capacity per unit, this cradle ensures stable and secure handling in industrial environments. Standard color: Blue. Tare weight: 1.9 kg.

Geometric Dimensions

• Maximum diameter: 1300 mm

• Length: 800 mm

• Width: 275 mm

• Height: 200 mm

• Base height: 30 mm

• V-angle: 30°

Load Capacity

• 1 cradle: 500 kg

• 2 cradles: 1,000 kg

• 3 cradles: 1,500 kg

• 4 cradles: 2,000 kg

Material

• Virgin Nylon PA6

• Standard colour: Blue

Packaging

• Packed on 1 pallet = 160 units
